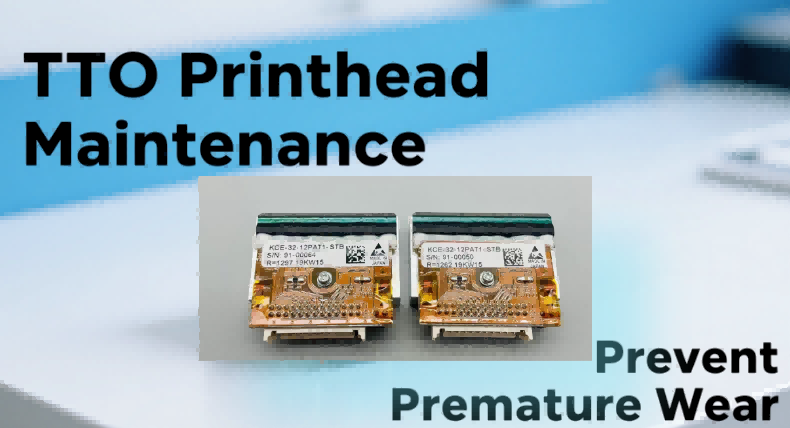

TTO Printhead Care: How to Prevent Premature Wear and Tear

I. Recommended Cleaning Procedure

Cleaning Frequency: The print head and platen roller must be cleaned every time a ribbon or roll of thermal paper is replaced. In harsh environments (e.g., dusty conditions), the cleaning frequency should be increased.

Cleaning Methods:

Dedicated Cleaning Cloth Method: Remove the ribbon and labels → Place the dedicated cleaning cloth onto the paper path → Rotate the handle to secure the cloth → Press and hold the print button to initiate cleaning → Repeat the process until clean.

Alcohol Swabbing Method: Using a cotton swab or cleaning pen moistened with 97–99% isopropyl alcohol, wipe the print head in a single direction (avoid rubbing back and forth) → Wipe the platen roller → Allow the alcohol to evaporate completely (1–2 minutes) → Remove any paper debris or dust.

Precautions: Power off the device and allow the print head to cool down before cleaning. Do not use sharp tools or chemical solvents, as this may scratch or damage the heating elements.

II. Best Practices for Consumable Selection

(Preventing Damage Caused by Inferior Consumables)

Use Genuine Originals: Ribbons, label paper, and thermal paper must be genuine products specifically matched to the device by the original manufacturer; inferior consumables will accelerate print head wear.

Ribbon Requirements: Select specialized thermal transfer ribbons (featuring a protective back-coating to minimize friction); avoid ribbons with an excessively high resin content (as these require higher energy output, thereby increasing wear and tear).

Media Restrictions: Whenever possible, avoid using thermal paper (often referred to as a "print head killer"); if its use is unavoidable, you must reduce both the print density (darkness) and the print speed.

III. Parameter Setting Optimization (Reducing Printhead Load)

Darkness Adjustment: While ensuring print quality, reduce the darkness setting (higher darkness levels require greater energy input and accelerate wear).

Speed ​​Control: Avoid setting the print speed too high; excessive speed leads to high operating frequencies, which can cause overheating.

Resistance Calibration: Immediately adjust the resistance value after installing a new printhead to prevent burnout or premature failure.

Air Pressure Regulation: While maintaining print quality, lower the printhead air pressure to minimize physical wear and tear.

Image Simplification: Reduce the size of printed images and simplify complex patterns to decrease the operational burden on the printhead.

IV. Environmental and Installation Maintenance (Minimizing External Damage)

Dust Prevention: Avoid operating in dusty environments; install a protective dust cover and regularly clean accumulated dust from the machine's interior.

Static Electricity Protection: Eliminate static electricity on packaging films (e.g., by using a static eliminator) to prevent electrostatic discharge from damaging the heating elements.

Temperature Control: Maintain the operating environment temperature between 5°C and 40°C to prevent extreme temperatures from compromising performance.

Installation Alignment: Ensure the printhead is properly aligned during installation to avoid additional wear and the need for darkness compensation caused by misalignment.

Component Inspection: Regularly inspect the printhead gasket and the hardness of the rubber roller (using standard-hardness components) to prevent overly hard parts from accelerating wear.

V. Daily Usage Precautions

Prevent Abrasion: Ensure the ribbon width exceeds the label width to prevent the exposed printhead from being scratched by the edges of the labels.

Regular Inspection: Check the condition of the printhead daily before printing, and promptly address any issues regarding clogging or contamination.

Shutdown Maintenance: When the machine will remain idle for an extended period, power it off and perform moisture retention maintenance (e.g., by covering the printhead with a damp non-woven cloth).

By implementing the measures outlined above, the service life of TTO printheads can be effectively extended by 30%–50%, thereby reducing maintenance costs.
