Thermal Transfer Overprinters (TTO)

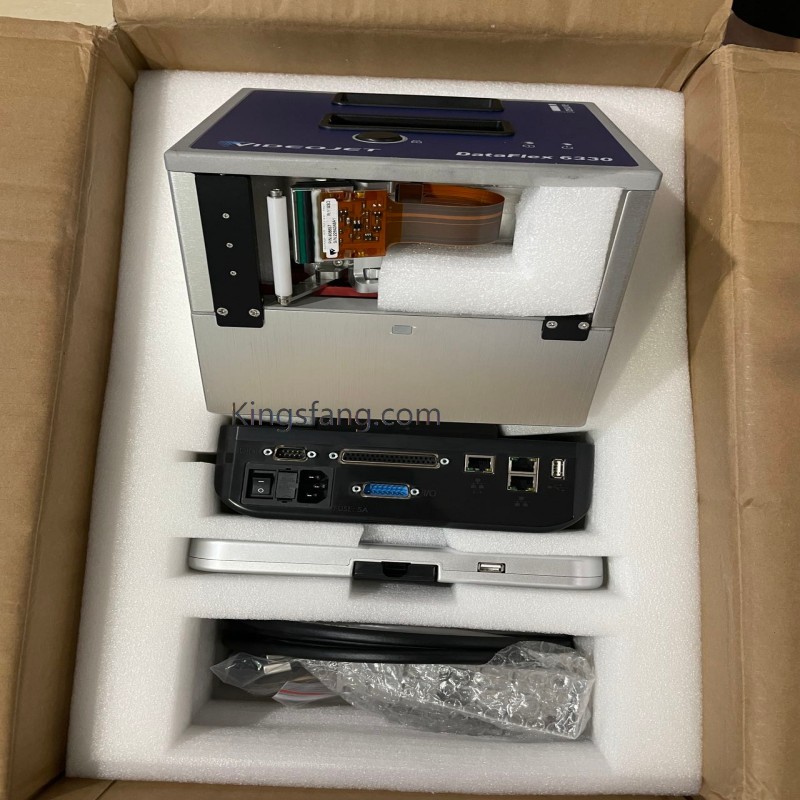

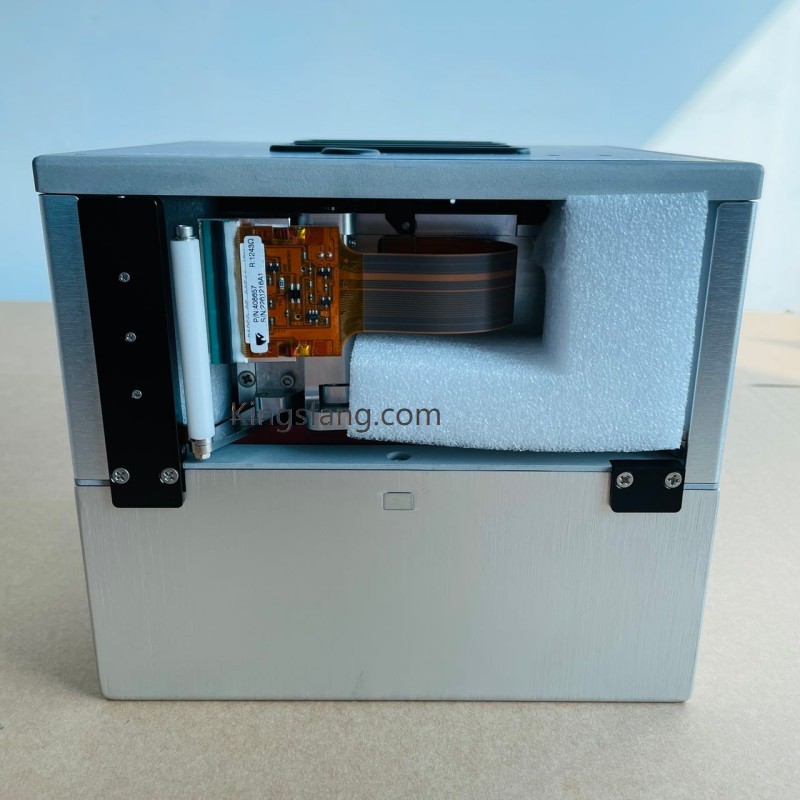

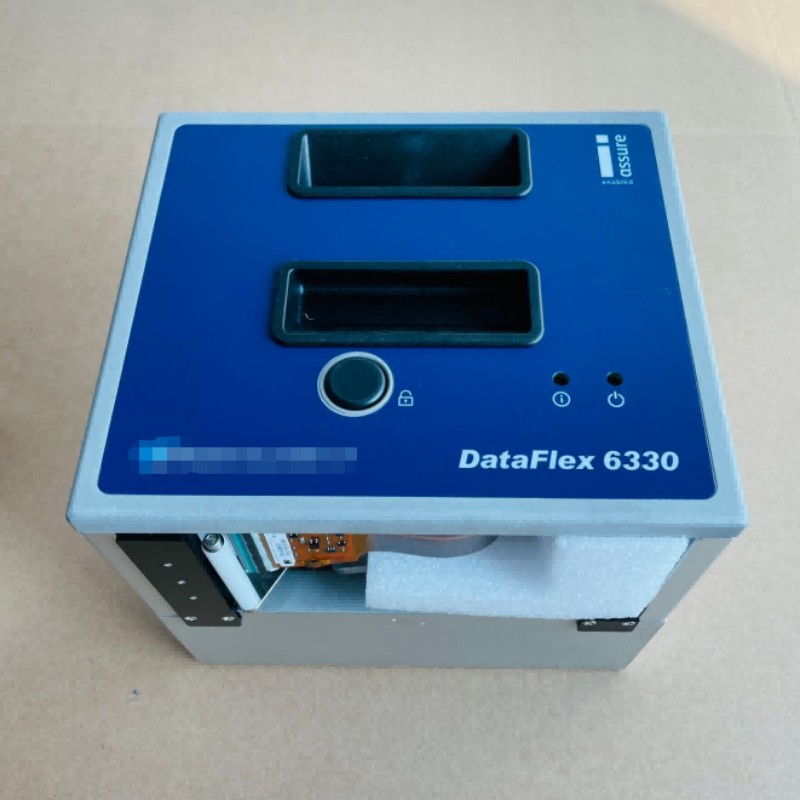

The 6530 and 6330 are part of the VJ DataFlex range of Thermal Transfer Overprinters (TTO), which are designed to give you a more productive operation. These VJ printers embody the latest technology to further improve uptime while reducing time spent on quality checks, waste, and rework to drive productivity, quality and efficiency.
Item No :
6530 6330Order(MOQ) :
1Payment :
via paypal, Western Union, Money Gram, bank, credit guarantee etcProduct Origin :
ChinaColor :
BlueShipping Port :
XiamenLead Time :
5-7daysWeight :
15kg| Specification | 6530 | 6330 |
| Printer Mode | Intermittent and Continuous Motion | Intermittent and Continuous Motion |
| Print Gap | Consistent 0.020″ (0.5mm) | Consistent 0.020″ (0.5mm) |
| Ribbon Widths | 6530 (53mm): 0.8” (20mm), 2.2” (55mm) max 6530 (107mm): 2.2” (55mm), 4.33” (110mm) max |
6330 (32mm): 0.8” (20mm), 1.3” (33mm) max 6330 (53mm): 0.8” (20mm), 2.2” (55mm) max |
| Bar Code Printing | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request |
| Operator Interface | TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support | TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support |
| Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface) | Up to four Videojet DataFlex® 6530 printers controlled via a single CLARiTY™ control unit | Up to four Videojet DataFlex® 6330 printers controlled via a single CLARiTY™ control unit |
| Standard Communication | RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows™ drivers ZPL and SATO emulations | RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations |
| Web Browser Capability | Yes | Yes |
| Continuous Mode: | – | – |
| Maximum Print Area (Width x Length) |
6530(53mm): 2.1” (53mm) wide x 11.8” (300mm) long 6530 (107mm): 4.3” (107mm) wide x 11.8” (300mm) long |
6330 (32mm): 1.3” (32mm) wide x 7.9” (200mm) long 6330 (53mm): 2.1” (53mm) wide x 7.9” (200mm) long |
| Maximum Print Speed | 39.4 in./sec (1,000mm/sec) | 29.5 in./sec (750mm/sec) |
| Minimum Print Speed | 0.04 in./sec (1mm/sec) | 0.04 in./sec (1mm/sec) |
| Estimated Maximum Throughput (Single Line Code) | 6530 (53mm): Up to 700 prints per minute 6530 (107mm): Up to 450 prints per minute |
6330 (32mm): Up to 250 prints per minute 6330 (53mm): Up to 250 prints per minute |
| Intermittent Mode: | – | – |
| Maximum Print Area (Width x Length) |
6530 (53mm): 2.1” (53mm) wide x 2.95” (75mm) long 6530 (107mm): 4.3” (107mm) wide x 2.95” (75mm) long |
6330 (32mm): 1.3” (32mm) wide x 2.95” (75mm) long 6330 (53mm): 2.1” (53mm) wide x 2.95” (75mm) long |
| Maximum Print Speed | 6530 (53mm): 31.5 in./sec (800mm/sec) 6530 (107mm): 23.6in./sec (600mm/sec) |
6330 (32mm): 29.5 in./sec (750mm/sec) 6330 (53mm): 29.5 in./sec (750mm/sec) |
| Minimum Print Speed | 0.4 in./sec (10mm/sec) | 1.6 in./sec (40mm/sec) full print quality; 0.4 in./ sec (10mm/sec) draft mode print quality |
|
PART NO
|
Size
|
Machine
|
|
403325
|
32MM
|
VJ TTO 6210
|
|
408300
|
32MM
|
VJ TTO 6230
|
|
408657
|
32MM
|
VJ TTO 6330
|
|
215984
|
53MM
|
VJ TTO
|
|
407933
|
53MM
|
VJ TTO 6530
|
|
408554
|
107MM
|
VJ TTO 6530 /LINX TT750
|
|
ENM10018596
|
32MM
|
Markem-Imaje 8018I
|
|
ENM10069361
|
32MM
|
Markem-Imaje X30
|
|
ENM10104642
|
53MM
|
Markem-Imaje X40
|
|
ENM10104650
|
53MM
|
Markem-Imaje X60
|

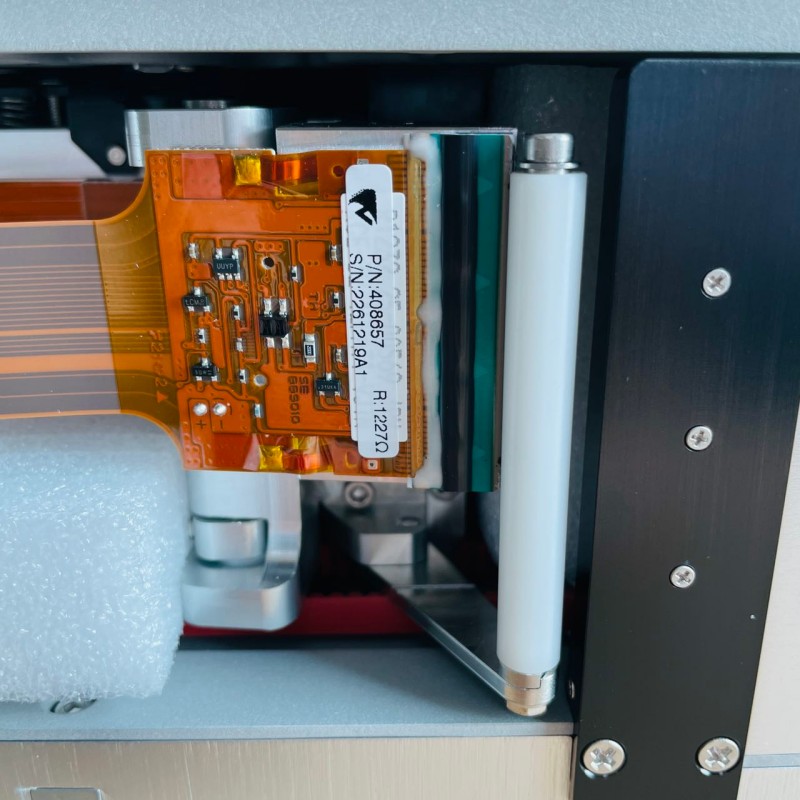

The 408657 TTO printhead is a genuine 32mm, 300 dpi thermal transfer printhead assembly manufactured by Kyocera for Videojet (Dover Corporation) and Linx (Linx Printing Technologies Ltd) TTO coding machines. It is used for high-resolution printing on flexible packaging films.
Read More
EPP001359SP, is a 32mm, 300 DPI thermal printhead kit designed for Domino V120i and V220i Thermal Transfer Overprinter (TTO) systems. This component is crucial for creating sharp, high-resolution codes and graphics on flexible packaging materials.
Read More
The 409090 TTO Cassette is a genuine spare part ribbon cassette for the Linx TT750 and compatible VJ Thermal Transfer Overprinter (TTO) machines. It holds the thermal transfer ribbon and is designed for quick and simple, tool-free changes during production.
Read More
The 401604 Linx 107mm Printhead is a specific, high-resolution thermal transfer printhead assembly used in Linx TT10 and 6420 TTO (Thermal Transfer Overprinter) coding machines. Manufactured by Kyocera, it is a crucial component for high-quality industrial printing on flexible packaging.
Read More
When searching for the 401604 Linx 107mm Printhead, using precise keywords will ensure you find the correct wide-format TTO component for industrial coders like the Linx TT10 and VJ 6420
Read More
The 401604 Linx 107mm Printhead is a specific, high-resolution thermal transfer printhead assembly used in Linx TT10 and 6420 TTO (Thermal Transfer Overprinter) coding machines. Manufactured by Kyocera, it is a crucial component for high-quality industrial printing on flexible packaging.
Read More
Thermal Transfer Overprinters (TTO) VJ DataFlex Industrial Thermal Transfer Printer The 6530 and 6330 are part of the VJ DataFlex range of Thermal Transfer Overprinters (TTO), which are designed to give you a more productive operation. These VJ printers embody the latest technology to further improve uptime while reducing time spent on quality checks, waste, and rework to drive productivity, quality and efficiency.
Read More
TTO Ribbon an ink-carrying film used in specific printers to apply high-resolution codes and variable information onto flexible packaging materials.The currently displayed sizes are only these three; 33mm*600m, 33mm*500m, 55mm*800m for more custom sizes and materials, please contact us.
Read More
