Replace Spare CB002-2005-002 CI580 1000 Series High-Voltage Deflection Plate

Replace Spare CB002-2005-002 CI580 1000 Series High-Voltage Deflection Plate

CB002-2005-002 (or simply 002-2005-002) is a deflector plate assembly (high-voltage deflector plate) designed specifically for Citronix continuous industrial inkjet printers (CIJ printers).

  • Item No :

    CB002-2005-002
  • Order(MOQ) :

    1
  • Payment :

    via paypal, Western Union, Money Gram, bank, credit guarantee etc
  • Product Origin :

    China
  • Color :

    NONE
  • Shipping Port :

    Xiamen
  • Lead Time :

    5-7days
  • Weight :

    1kg
New Products

Product Description
CB002-2005-002 is a core high-voltage electronic component located inside the printhead of Citronix inkjet printers.

This deflection plate—typically featuring an angled design—integrates high-voltage resistors and utilizes a high-voltage electrostatic field to precisely deflect charged ink droplets to a specific angle, ensuring accurate printing onto the product surface.

The component is manufactured from industrial-grade materials offering high insulation, wear resistance, and corrosion resistance, enabling it to withstand the ink environment while maintaining high-precision printing performance.

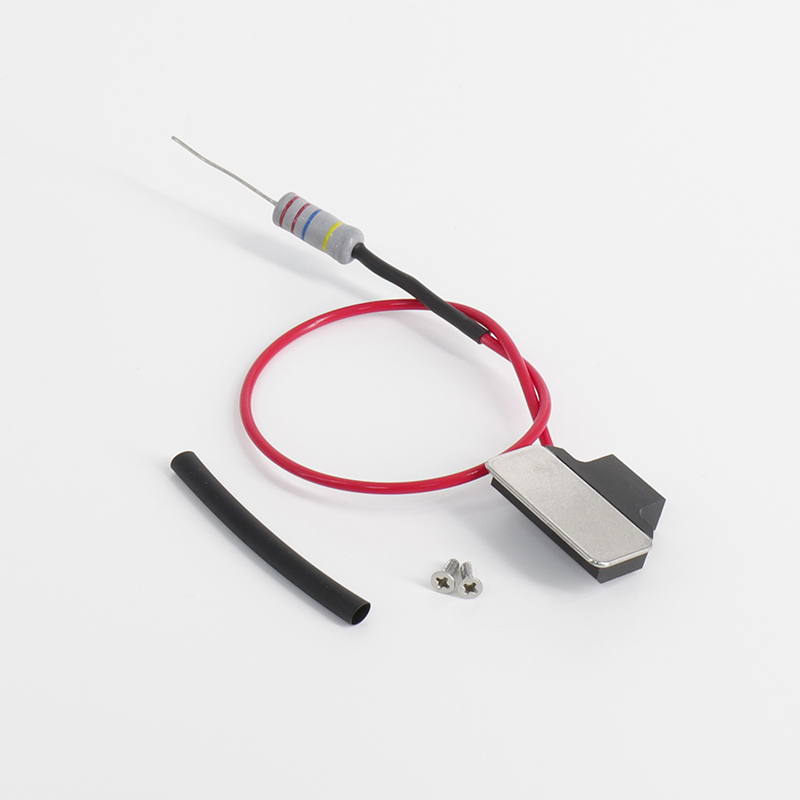

Deflector Plate

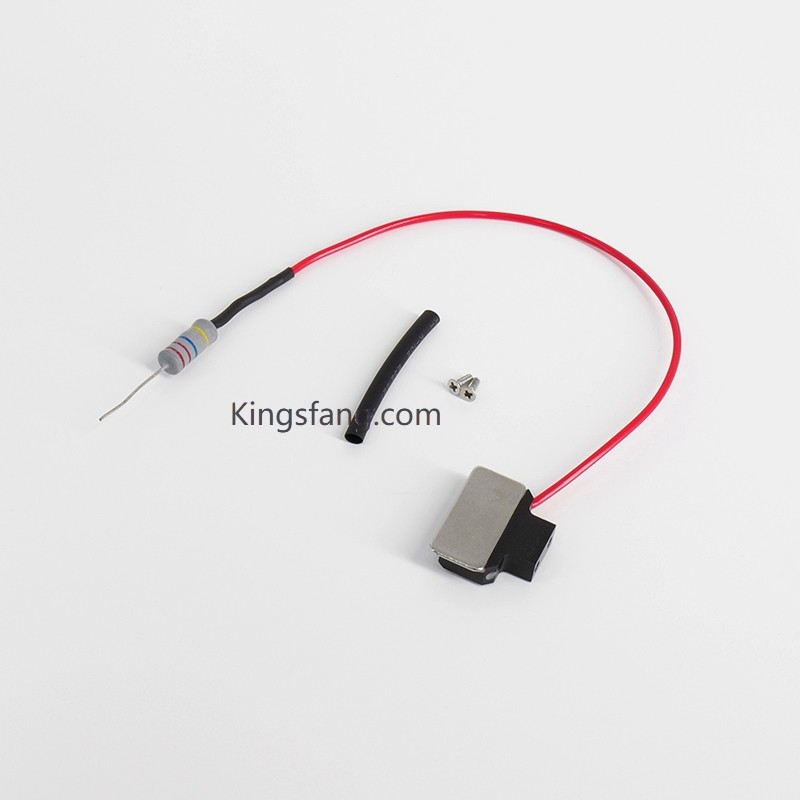

Deflector Plate

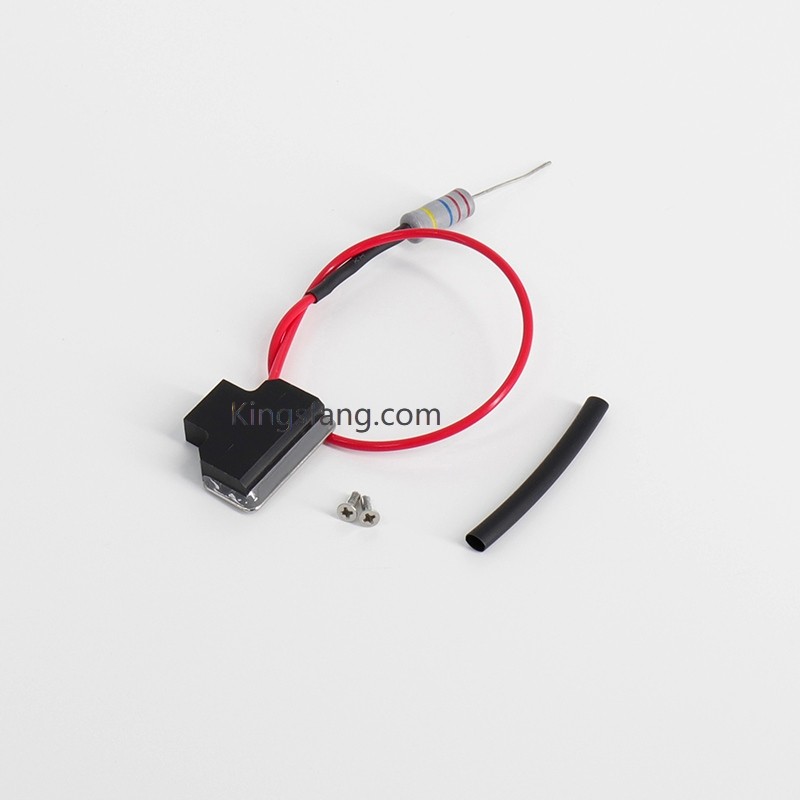

Deflector Plate



Deflector Plate

Deflector Plate

FAQ
Q1: Which Citronix printer models is this deflection plate primarily designed for?
A: It is widely compatible with Citronix's mainstream Continuous Inkjet (CIJ) printers, including the ci580 and ci1000 series models.
Q2: What symptoms will the printer exhibit if this part malfunctions or becomes dirty?
A: Common symptoms include High Voltage Faults, print position shifts due to deflection anomalies, character scattering, blurred printing, or ink accumulation on the deflection plate leading to nozzle clogs.
Q3: What precautions should be taken when replacing or maintaining this deflection plate?
A: When cleaning the printhead, ensure the deflection plate is completely dry before re-engaging the high voltage; otherwise, residual cleaning agents or moisture on the surface can cause high-voltage arcing or short-circuit damage.
Certifications

Deflector Plate











Packaging & Shipping

Deflector Plate
