GB-SKN0946 White ink machine mixing rod 8*35 for Rottweil Inkjet Printer

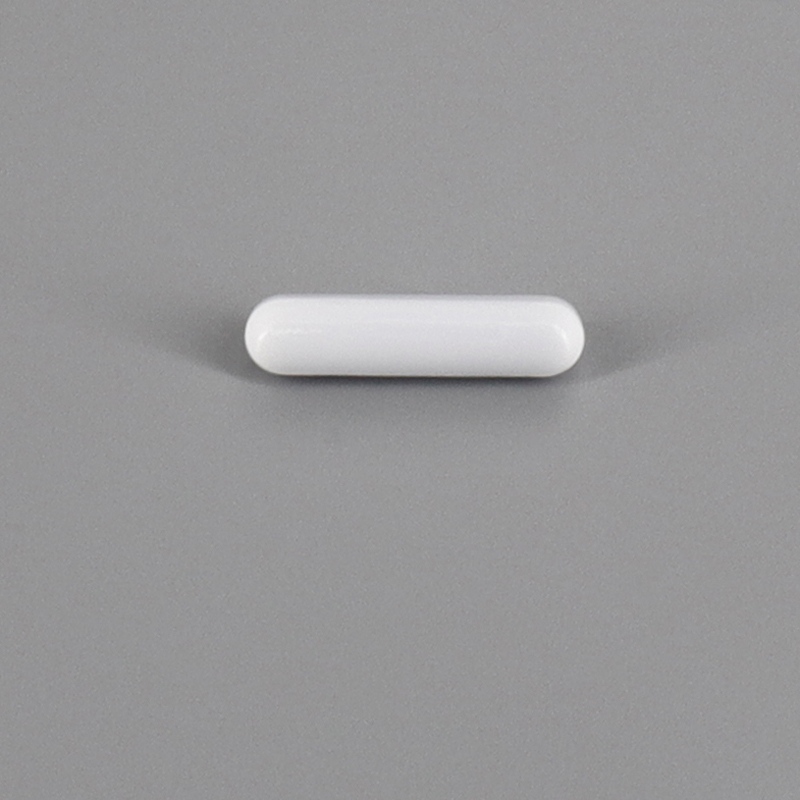

Mixing Rod 8*35

GB-SKN0946 White ink machine mixing rod 8*35 for Rottweil Inkjet Printer

The GB-SKN0946 is a key magnetic component used in the pigment ink system of industrial Continuous Inkjet (CIJ) printers; its official product name is "White Ink Machine Mixing Rod 8*35" (a mixing rod or magnetic stir bar designed specifically for white ink machines).

  • Item No :

    GB-SKN0946

  • Order(MOQ) :

    1

  • Payment :

    via paypal, Western Union, Money Gram, bank, credit guarantee etc

  • Product Origin :

    China

  • Color :

    NONE

  • Shipping Port :

    Xiamen

  • Lead Time :

    5-7days

  • Weight :

    1kg
Inquire Now
Product categories
New Products

Product Description
This accessory is primarily designed to prevent the settling of high-density, opaque pigment inks—such as white or yellow inks—and measures 8 mm in diameter and 35 mm in length. It consists of a strong magnet encapsulated in a corrosion-resistant material (such as PTFE/Teflon); during operation, it is placed into the ink reservoir and driven to rotate by a magnetic drive unit located at the bottom.


Mixing Rod 8*35


Rottweil Mixing Rod 8*35



Rottweil Mixing Rod 8*35



Rottweil Mixing Rod 8*35

Rottweil Mixing Rod 8*35

FAQ
Q1: What are the primary functions and working principles of the GB-SKN0946?
A1: It is a magnetic stirring rotor designed specifically for pigment-based ink systems (such as white or yellow ink) in industrial inkjet printers. White ink, which contains high concentrations of titanium dioxide particles, is prone to settling. Placed at the bottom of the ink tank, the stirring bar is driven by the printer's internal magnetic drive unit (which operates without direct contact with the ink). This unit magnetically attracts and spins the bar at high speed, continuously dispersing solid particles to ensure uniform ink concentration and prevent sedimentation or clogs in the fluid lines.
Q2: What do the dimensions "8*35" signify? Can it be used interchangeably with other sizes?
A2: "8*35" indicates the physical dimensions of the stirring bar: a diameter of 8 mm and a length of 35 mm. Interchangeable use is strictly prohibited. The ink tank space and the bottom magnetic coil design in CIJ printers are precision-matched. Using a bar that is too long or too short prevents proper magnetic coupling, causing the bar to bounce erratically, fail to spin, or even jam completely.
Q3: Under what circumstances should the stirring bar (GB-SKN0946) be replaced?
A3: Immediate replacement is required in the following three situations: Casing wear: The corrosion-resistant Teflon (PTFE) coating wears off, exposing the internal metal magnet; this leads to metal contamination of the ink (causing white ink to turn black or degrade). Magnetic weakening: Exposure to strong acids/alkalis or high operating temperatures causes magnetic performance to deteriorate, resulting in weak rotation that fails to keep pace with the magnetic drive, ultimately triggering sedimentation alarms. Surface damage/deformation: Scratches, adhesion of hardened ink, or surface wear cause unbalanced rotation.
Q4: Which brands of inkjet printers is this stirring bar compatible with?
A4: In the international market for inkjet printer spare parts, this model (GB-SKN-XXXX series) serves primarily as a standard compatible replacement for Hitachi PX, PXR, and RX series white-ink printers, Leibinger printers, and certain high-end general-purpose pigmented-ink printers.
Q5: How can I prevent the GB-SKN0946 from jamming or becoming damaged during daily operation?
A5: Regular cleaning: Before any scheduled prolonged shutdown (such as weekends or public holidays), you must perform the white-ink system cleaning procedure. This involves draining the white ink from the bottom of the ink tank and adding the designated make-up fluid (solvent) to prevent the ink from crystallizing and hardening, which could jam the stirring rod. Pre-startup check: If restarting the machine after a shutdown, manually verify that the stirring rod has not been stuck to the bottom of the tank by dried ink. If it is jammed, do not force the machine to start; instead, pour in the designated cleaning agent to soften the residue.
Certifications

Rottweil Mixing Rod 8*35











Packaging & Shipping

Rottweil Mixing Rod 8*35
