ENM10110531 9700 HYDRAULIC MODULE 6 EQUIPPED for Imaje 9700 Inkjet Printer

ENM10110531 9700 HYDRAULIC MODULE 6 EQUIPPED for Imaje 9700 Inkjet Printer

This is an original core hydraulic module assembly for Markem-Imaje (France) coding printers (official product name: 9700 HYDRAULIC MODULE 6 EQUIPPED).

This part is a critical replacement unit for the ink circuit of industrial Continuous Inkjet (CIJ) printers; we sell genuine OEM parts backed by a six-month warranty.

  • Item No :

    ENM10110531
  • Order(MOQ) :

    1
  • Payment :

    via paypal, Western Union, Money Gram, bank, credit guarantee etc
  • Product Origin :

    China
  • Color :

    NONE
  • Shipping Port :

    Xiamen
  • Lead Time :

    5-7days
  • Weight :

    3kg
New Products

Product Description
Compatible Models: Markem-Imaje 9700 series, 9700+, and the latest-generation 9750 series industrial inkjet printers.
Module Function: Classified under the manufacturer's preventive maintenance schedule as the M6 ​​Hydraulic Module (Module 6), it is responsible for precisely regulating the pressure and flow within the ink circuit.
Maintenance and Replacement Instructions:
1. Before manually removing the old M6 module (Module 6), the hydraulic circuit draining procedure must be initiated within the printer's system.
2. During replacement, use a 3 mm Allen key to switch the corresponding control valve inside the unit to the "Maintenance position"; only after the system has automatically completed the draining process can the module be safely pulled forward and replaced.

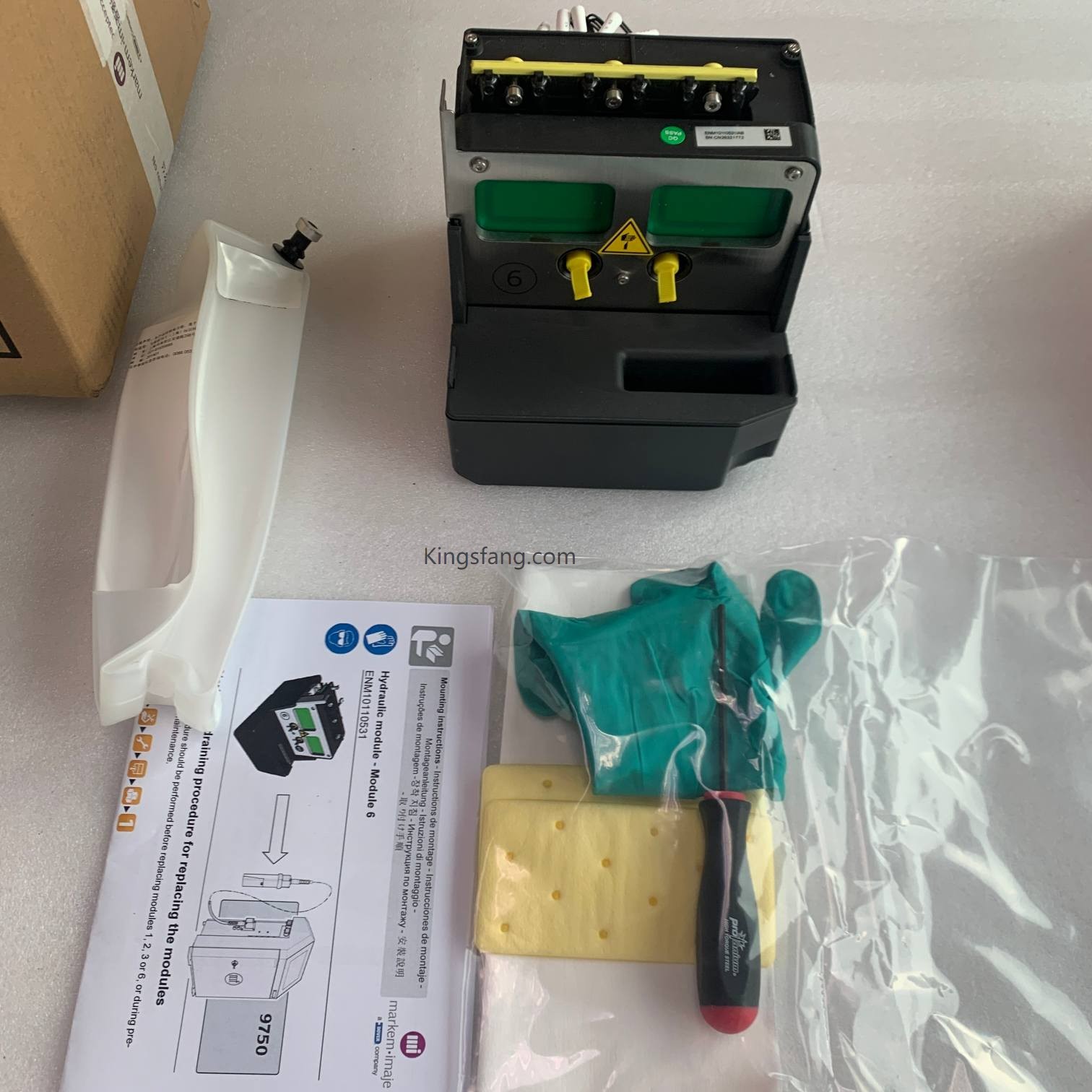

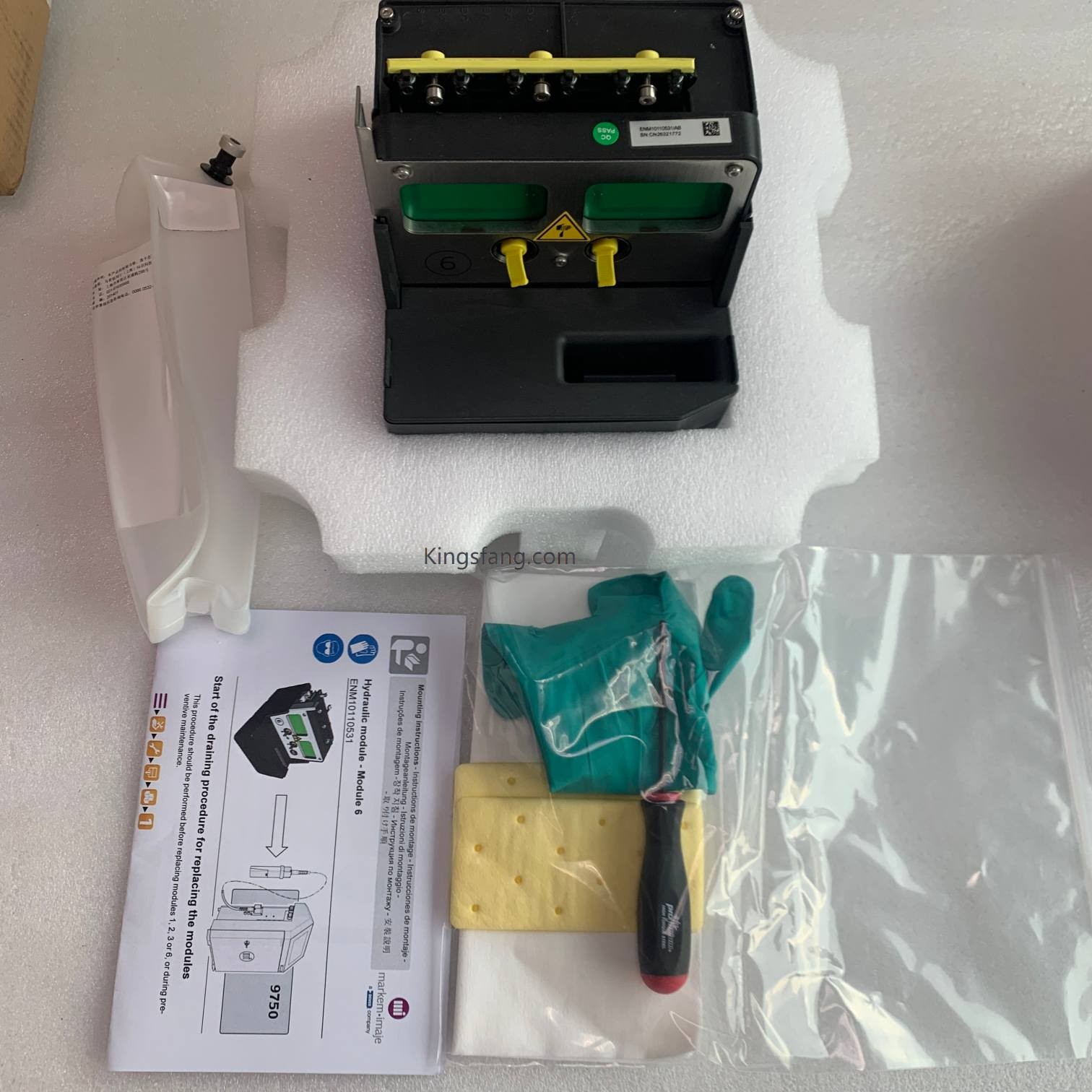

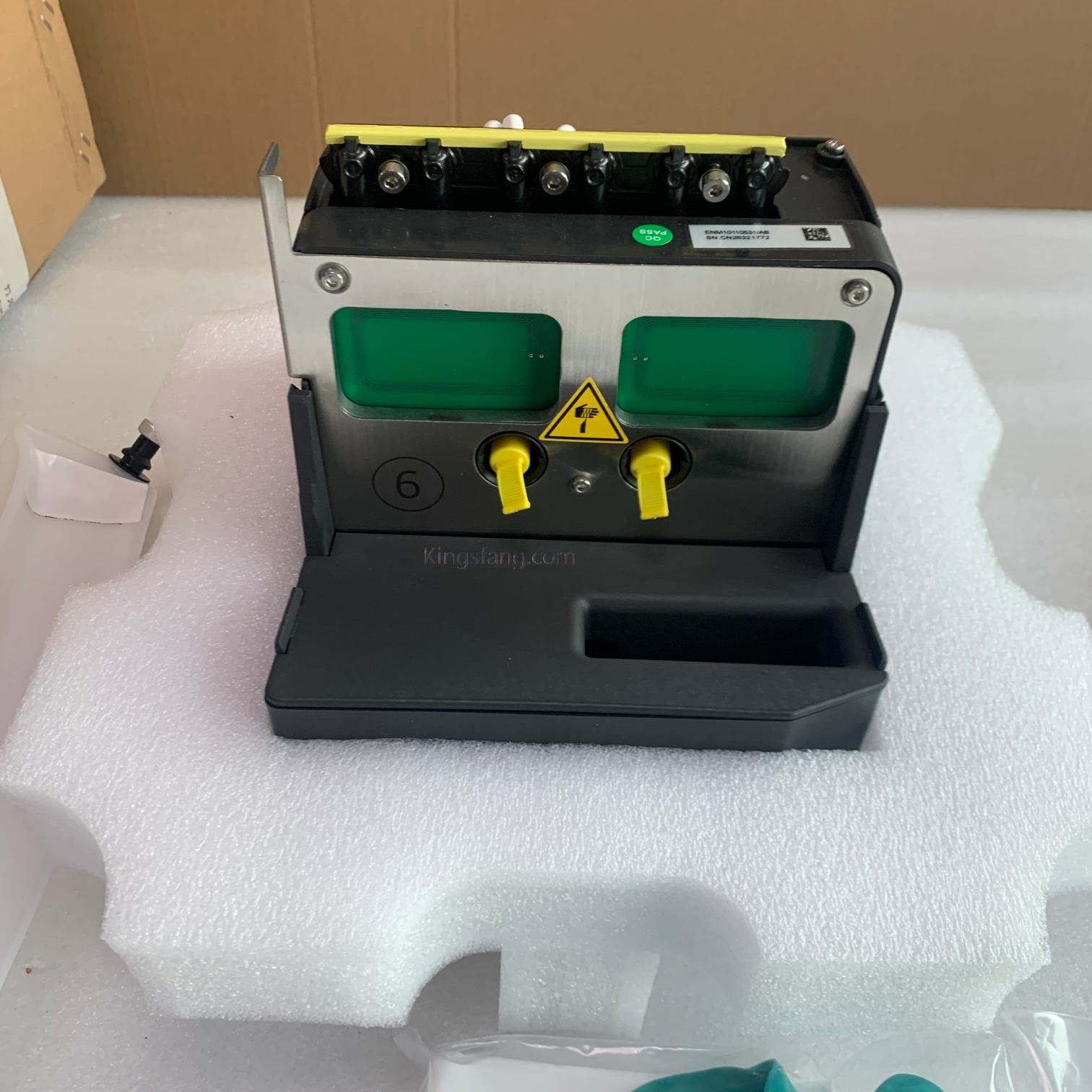

9700 Hydraulic Module 6 Equipped


9700 Hydraulic Module 6 Equipped



9700 Hydraulic Module 6 Equipped



9700 Hydraulic Module 6 Equipped

9700 Hydraulic Module 6 Equipped

FAQ

Q1: When does the ENM10110531 (Module 6) module need to be replaced?
A:
1. Preventive Maintenance (PM): When the machine reaches the specified operating hours (prompting a replacement of the core ink circuit assembly).
2. Fault Alarm: When the Diagnostic Wizard reports anomalies in the hydraulic circuit or ink pressure, or a failure in solenoid valve regulation.
3. Ink Drying or Clogging: When the machine has been idle for an extended period (exceeding the 15-day limit) without proper flushing, causing severe clogging of the internal valve chips or tubing.

Q2: What is the most important step before removing this module?
A: Never pull it out directly!
Before removing the module, you must select and start the "Draining procedure" on the machine's operation screen. The system will guide you to use a 3mm hex key to rotate the control valve to the "Maintenance Position," allowing the machine to automatically drain the ink from the module. Removing it directly without this step can cause significant ink spatter, damaging surrounding electronics and the interior of the cabinet.

Q3: What is the manufacturer's warranty period for a new M6 module?
A: According to Markem-Imaje's official online store standards, this genuine spare part comes with a 6-month warranty period.

Q4: Can I disassemble the ENM10110531 myself for cleaning or repair?
A: This is strongly discouraged. The M6 ​​module is a highly precise, sealed hydraulic unit containing delicate solenoid valves and sensing components. Unauthorized disassembly can easily damage seals (leading to ink leaks) or allow contaminants to enter, causing severe printhead clogging. The standard practice is to scrap the unit entirely or exchange it for a refurbished one via the manufacturer's Advanced Exchange Service.

Q5: How can I obtain the complete replacement manual?

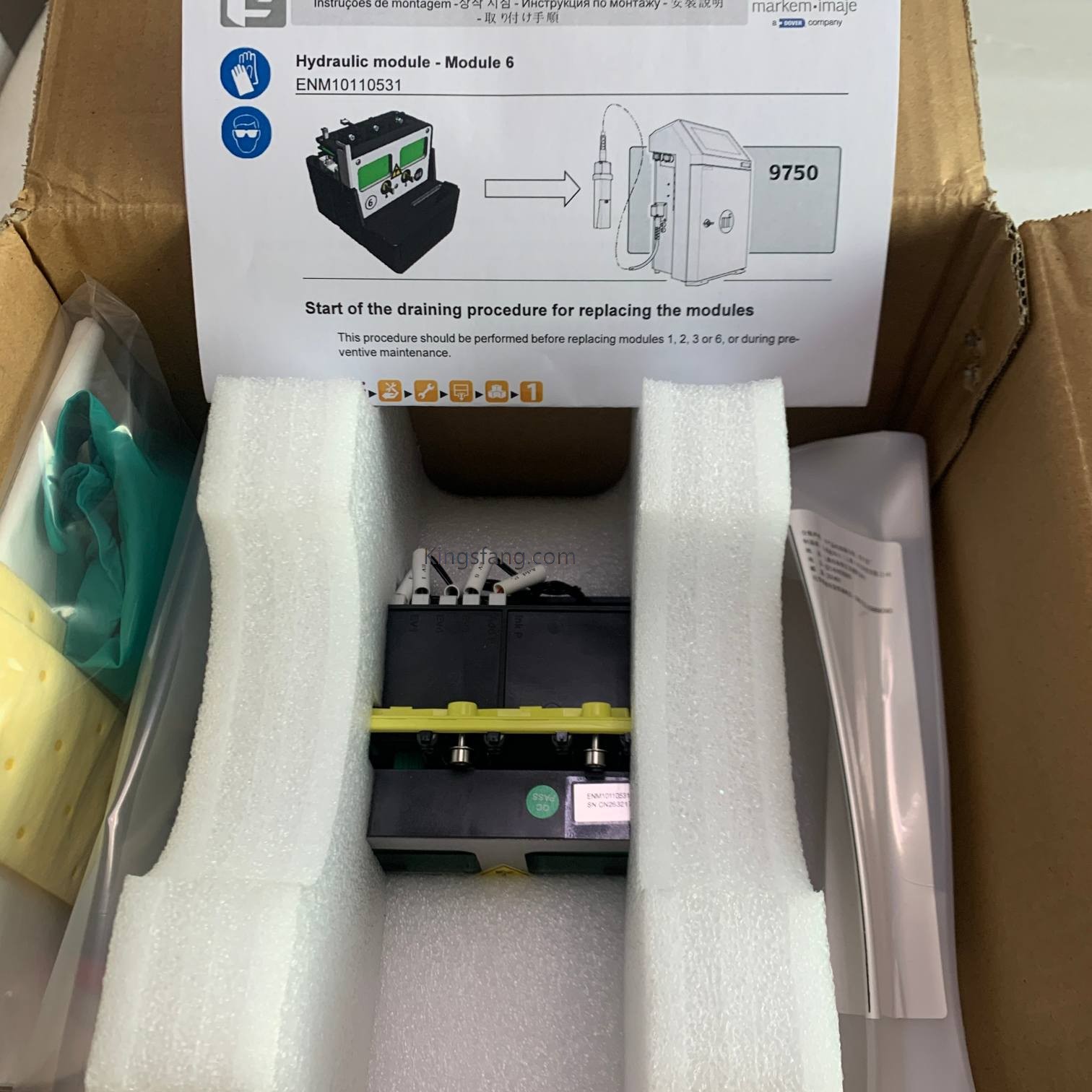

A: The accessories include a paper manual for the M6 ​​module.
Q6: Is this an original Imaje part or a compatible (aftermarket) part?
A: Both original parts and high-quality compatible parts exist on the market. For example, KSF (kingsfang.com), a Chinese factory specializing in compatible parts, has R&D qualifications and provides stable and reliable after-sales service. It's worth trying, and we offer testing services.

Q7: Can you help me source specific inkjet printer parts that are not listed on your website?
A: You can contact us directly to obtain the latest product catalog. We are happy to help customers find suitable products. Send us an inquiry, and we will contact you.
