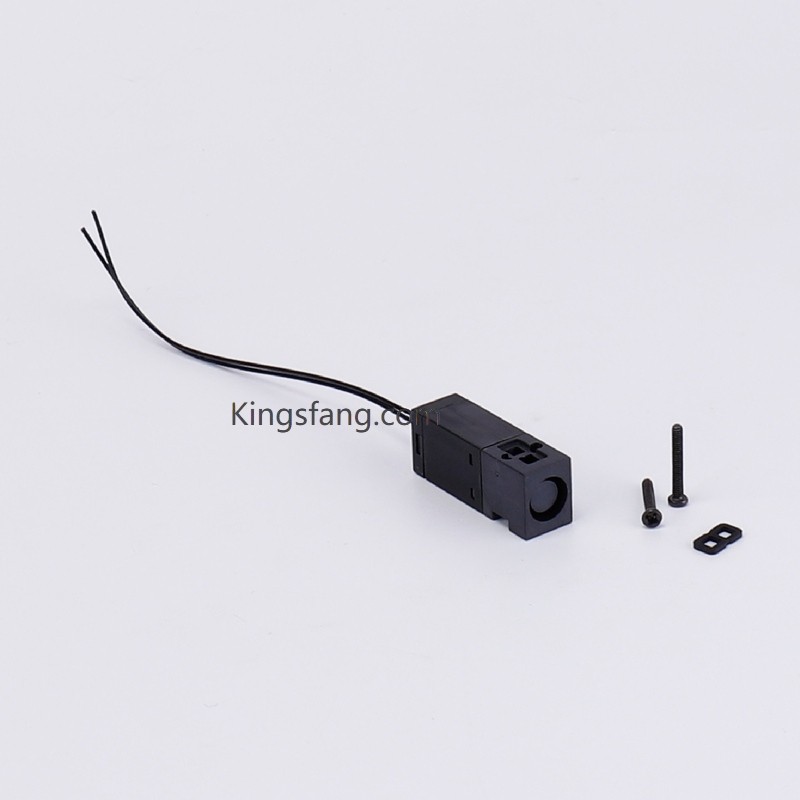

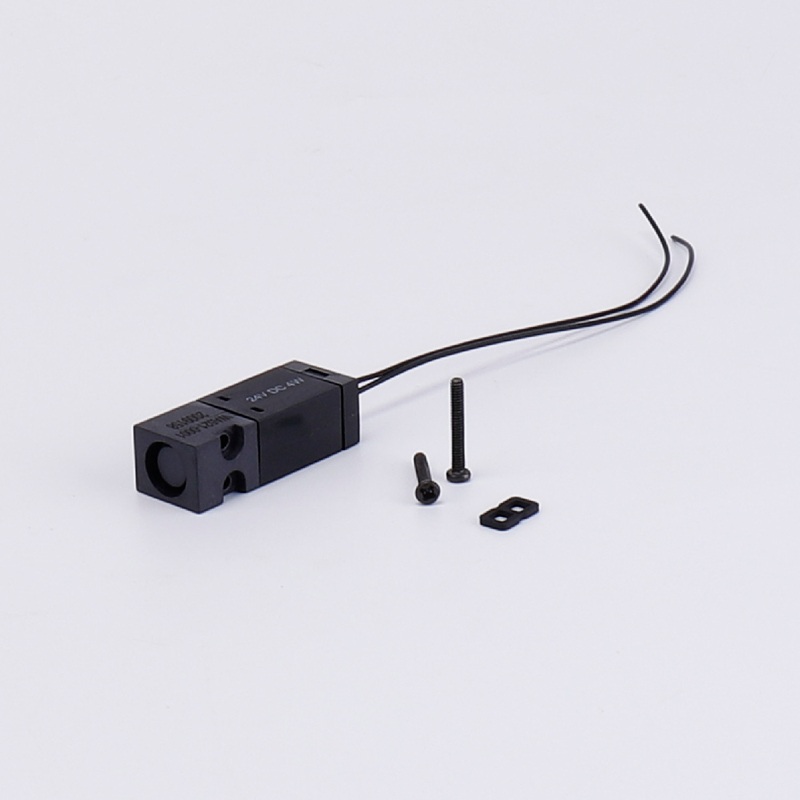

WB521-0001-177 PICO Valve for Willett Inkjet Printer

Q1: What is the primary function of the WB521-0001-177 PICO valve in the machine?

In the ink system of the Willett 430/43s, this miniature solenoid valve primarily controls ink recovery, solvent feed, or the switching required for automatic printhead cleaning during shutdown. It uses the energizing and de-energizing of an electromagnetic coil to precisely control the vertical movement of an internal piston (valve core), thereby directing fluid flow.

Q2: How can I determine if this PICO valve is damaged and needs replacement?

If the printer displays the following alarms or symptoms, this solenoid valve is likely the root cause: Poor recovery (Gutter Fault / Recirculation Fault): The ink jet flows normally after startup, but the recovery tube fails to draw in ink, causing the printhead to overflow; this is usually due to the V11 or V12 recovery valve being stuck. Coil burnout (Valve Coil Open/Short): The circuit board detects an open circuit in the solenoid valve coil, triggering a specific valve fault error code. Cleaning function failure: Pressing the automatic cleaning button results in no solvent flowing to the printhead, indicating the cleaning valve cannot open properly.

Q3: Should the seal ring be replaced when replacing this solenoid valve?

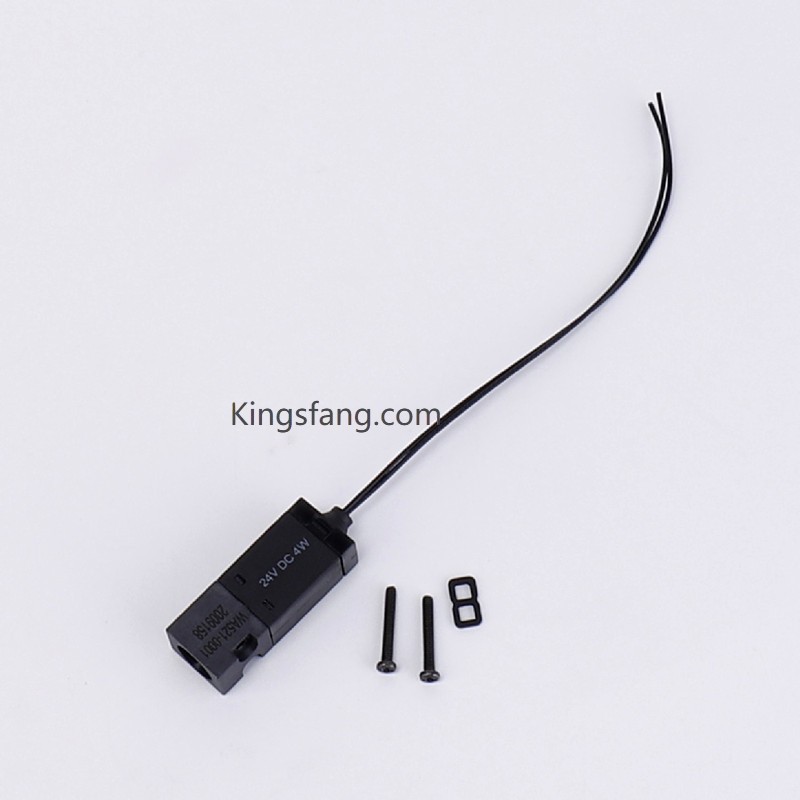

It is strongly recommended to replace it. The base of the PICO valve is typically fitted with a special figure-eight-shaped rubber seal (Part No.: WB-PC1142). Old seals often become deformed or degraded after prolonged exposure to fluids and compression; reusing them makes leaks (ink or solvent) highly likely after the new valve is installed.

Q4: Are there any installation tips for replacing this valve body?

Apply moderate tightening force: Do not overtighten the screws securing the PICO valve, as this can deform the plastic base, strip the screw threads, or crush the seal, leading to leaks. Ensure correct orientation: Carefully check the direction of the fluid inlet and outlet ports during installation (look for directional markings or alignment pins on the valve body). Installing it backward will cause errors in the ink system logic and may even damage the pump.
