DB3-0320002SP A Series Motor Connector Cable for Domino A-GP A120 inkjet printer

DB3-0320002SP A Series Motor Connector Cable for Domino A-GP A120 inkjet printer

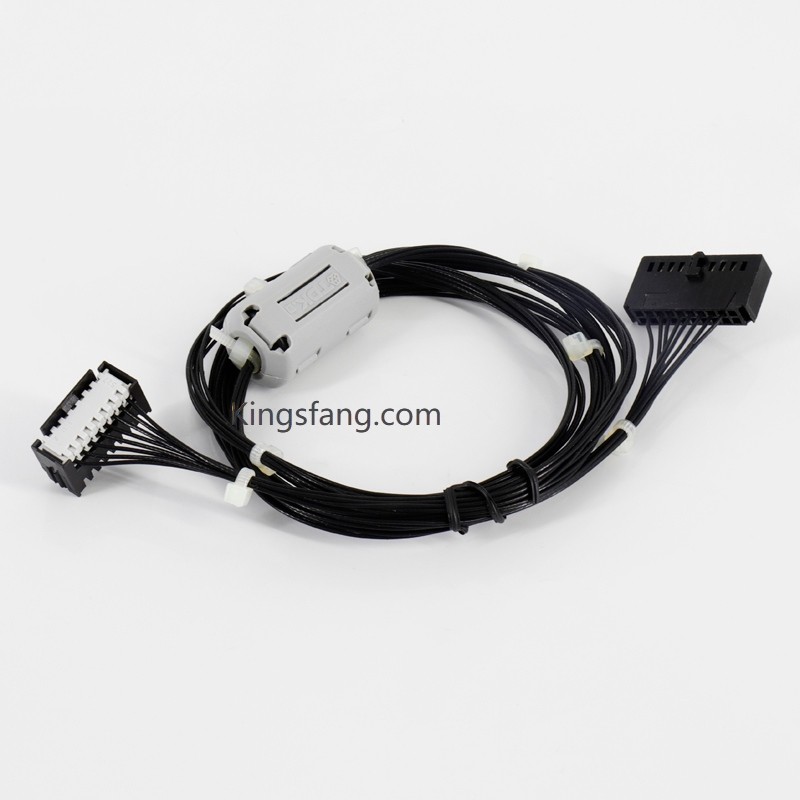

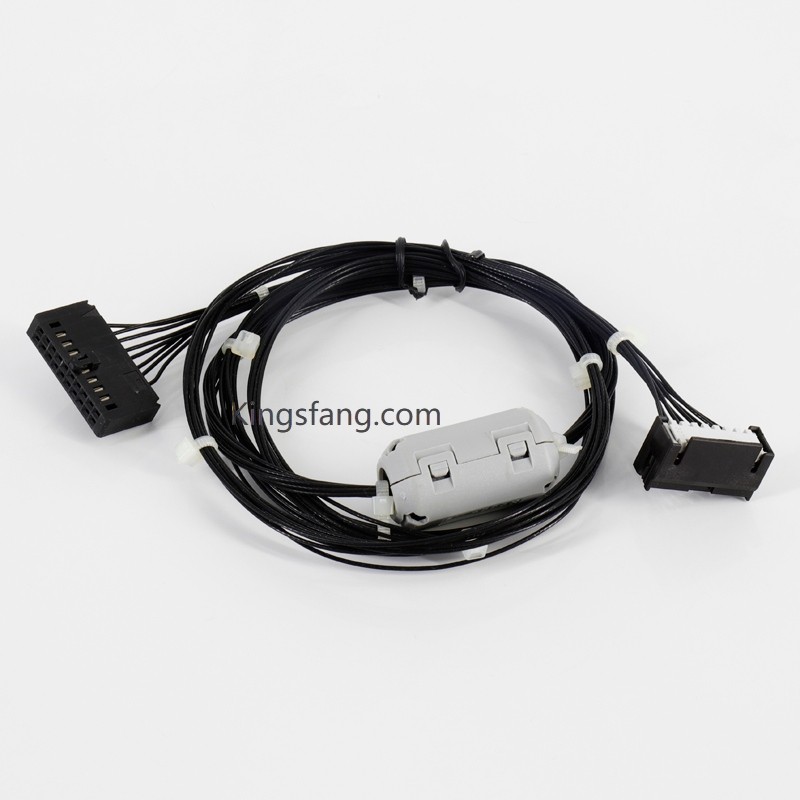

This is the "PCB to Pump/Motor Cable" for the Domino A-Series Continuous Inkjet (CIJ) printer. This component is primarily responsible for transmitting control signals and power from the main circuit board (PCB) to the pressure pump motor, serving as a critical electronic link for the proper operation of the ink circulation system.

  • Item No :

    DB3-0320002SP
  • Order(MOQ) :

    1
  • Payment :

    via paypal, Western Union, Money Gram, bank, credit guarantee etc
  • Product Origin :

    China
  • Color :

    NONE
  • Shipping Port :

    Xiamen
  • Lead Time :

    5-7days
  • Weight :

    1kg
New Products
Product Description
Part No.: 3-0320002SP / DB3-0320002SP
Part Name: PCB-to-Pump Cable (Mainboard-to-Pump Connection Cable / Motor Cable)
Compatible Models: Domino A-Series Classic inkjet printers (e.g., A-GP, A120, A220).
Product Classification: Electronic connection consumable; features a protective sheath resistant to vibration, industrial oils, and chemical solvents (including corrosion from ink and make-up fluid).

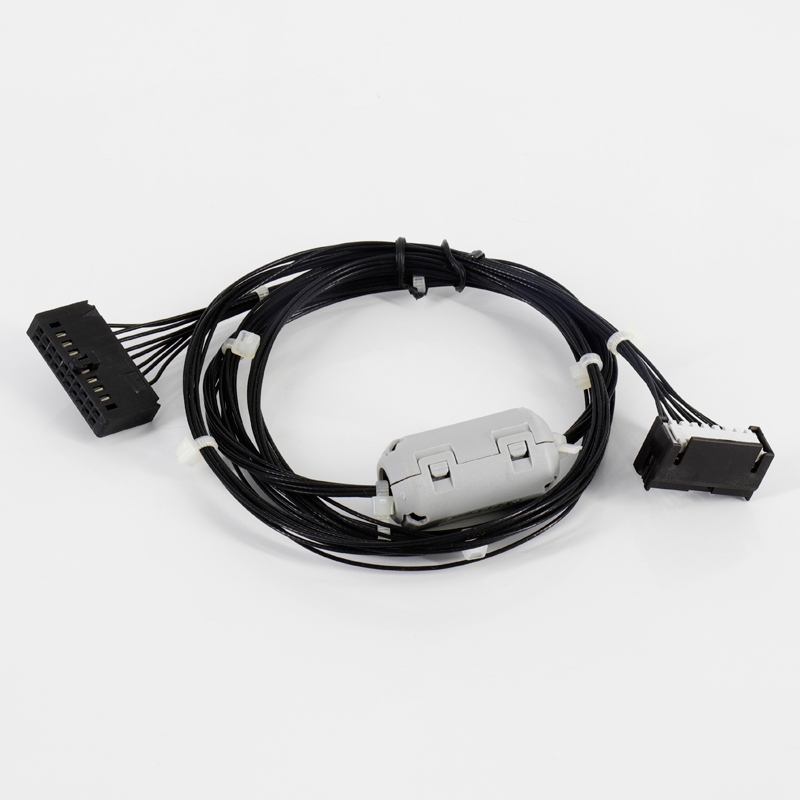

Domino printer pump connector wire


Domino printer pump connector wire



Domino printer pump connector wire



Domino printer pump connector wire

Domino printer pump connector wire

FAQ
Q1: What is the difference between DB3-0320002SP and 3-0320002SP?
A1: They refer to the same part. 3-0320002SP is the official Domino part number, whereas DB3-0320002SP is a code with a prefix added by aftermarket or compatible parts suppliers to distinguish the brand (DB stands for Domino).
Q2: Which internal components does this cable connect?
A2: One end connects to the main control board (Motherboard/PCB) of the Domino A-Series printer, and the other connects to the internal main pressure pump motor; it transmits the power required for motor operation and the motor speed feedback signal.
Q3: How can I determine if the printer malfunction is due to a "poor connection" in this cable rather than a faulty motor?
A3: If the motor itself is functional but the cable is damaged, the machine typically exhibits the following symptoms: a "Motor Fault" or "Pressure Fault" suddenly appears during operation due to factory machine vibrations, though the system might briefly recover after a restart. Testing the cable terminals with a multimeter reveals intermittent continuity. There are traces of ink or solvent seepage at the connectors, causing the terminals to oxidize and turn black or develop green corrosion (verdigris).
Q4: What safety precautions are required when replacing this cable?
A4: You must completely disconnect the main power supply: the motherboard connector carries drive voltage, and disconnecting or connecting it while powered on can easily fry motherboard chips. Implement anti-static measures: wear an anti-static wrist strap or touch a grounded metal object before handling motherboard connectors. Verify cable routing: use the original factory cable clips to secure the cable and prevent it from rubbing against sharp edges of the machine casing.
Q5: Is this cable fully interchangeable between the A-GP and A120 models?
A5: Yes. Domino A-Series classic models (such as A-GP, A120, A220, A320, etc.) share a high degree of commonality regarding their ink systems and motherboard architecture; this cable can be used as a direct replacement across these models.
Q6: Is this an OEM part or a compatible (aftermarket) part?
A6: Many suppliers of coding machine consumables offer "one-to-one" compatible replacement parts at a lower cost. For example, Kingsfang.com operates its own R&D and manufacturing facilities and offers parts covering 90% of the coding industry's needs, making it an excellent choice.
