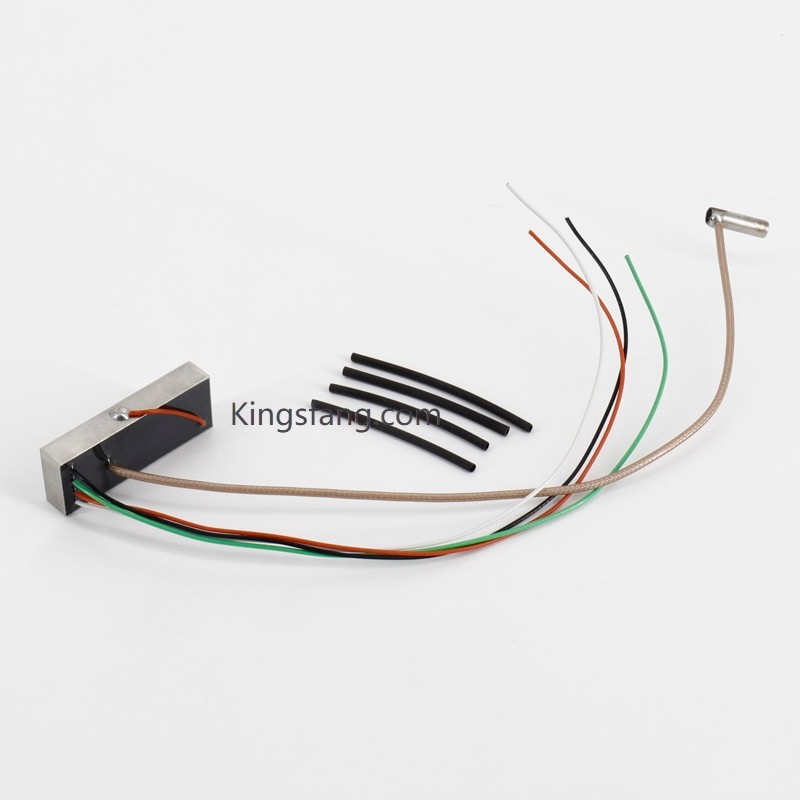

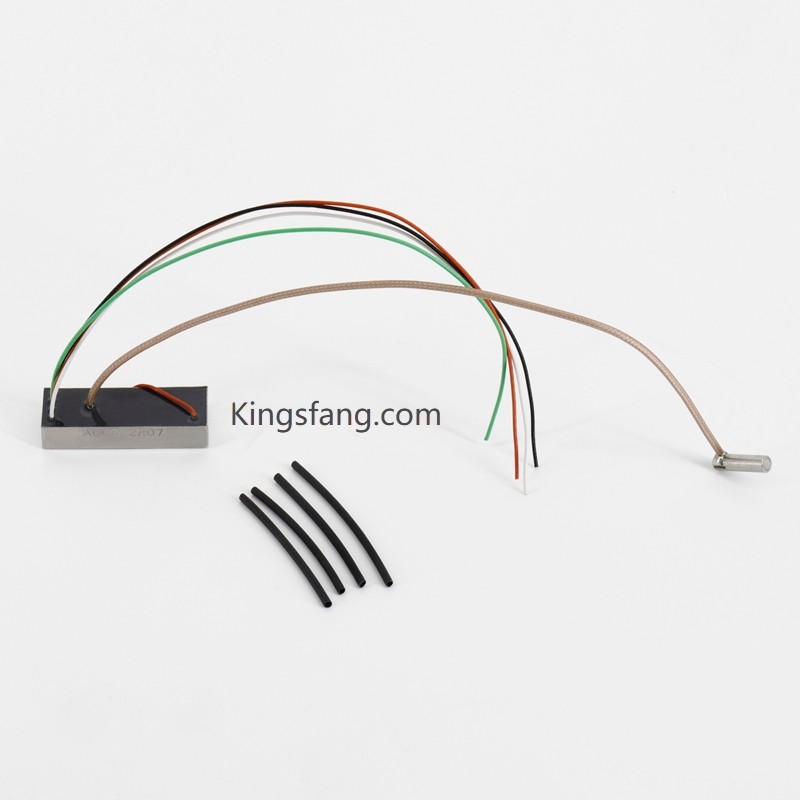

CB002-1073-002 Phase Detector for Citronix CI1000 Inkjet Printer

CB002-1073-002 Phase Detector for Citronix CI1000 Inkjet Printer

The CB002-1073-002 Type C Phase Detector (also referred to in some supply chains as a phase amplifier or "PC Card Lifier Amp Phase") is a critical electronic control spare part specifically designed for Citronix Ci-series continuous small-character inkjet (CIJ) printers.

  • Item No :

    CB002-1073-002
  • Order(MOQ) :

    1
  • Payment :

    via paypal, Western Union, Money Gram, bank, credit guarantee etc
  • Product Origin :

    China
  • Color :

    NONE
  • Shipping Port :

    Xiamen
  • Lead Time :

    5-7days
  • Weight :

    1kg
New Products
Product Description
OEM/Compatible Part Number: CB002-1073-002
Component Type: Type C Phase Detector / Phase Amplifier Circuit Board
Equipment Compatibility: Designed for Citronix printer printhead systems printhead architectures
Connector Specification: The module typically connects via a specific 7-pin optical or electronic connector.

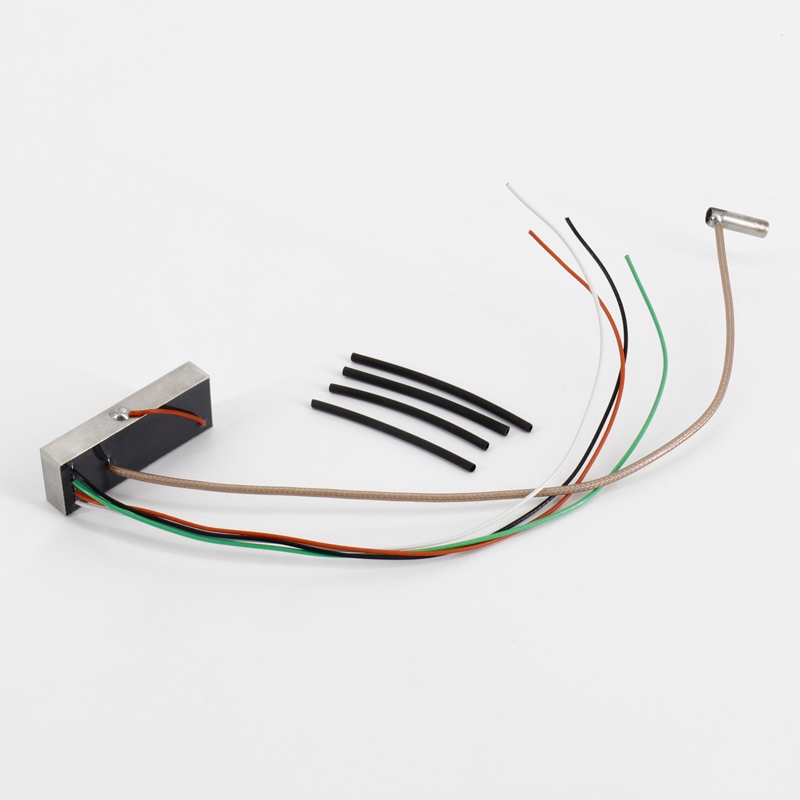

Citronix printer Phase Detector


Citronix printer Phase Detector



Citronix printer Phase Detector



Citronix printer Phase Detector

Citronix printer Phase Detector





FAQ
Q1: What is the specific function of the "phase detector" in the inkjet printer?
A1: Continuous Inkjet (CIJ) technology relies on breaking an ink stream into thousands of tiny droplets, then charging and deflecting them. The phase detector's role is to capture the optimal moment (phase) for charging the droplets. If the break-off point is unsynchronized with the charging pulse, the droplets fail to acquire the correct charge, resulting in distorted, skewed, or broken characters in the print output.
Q2: What equipment malfunctions occur when the CB002-1073-002 is damaged?
A2: When this phase detector or amplifier board fails,common printer alarms and anomalies include frequent "Phase Error" or "Charging Fault" alerts. Printed characters and barcodes may appear distorted, jittery, incomplete, or suffer from severe ink scattering. The ink stream fails to deflect correctly within the deflection plates and shoots directly into the gutter, preventing the printer from printing properly.
Q3: Why is this component sometimes referred to as a "phase amplifier"?
A3: Because the phase signal sensed from the ink droplets is extremely weak (typically in the microampere or millivolt range). This PCB (C-type phase detector) integrates a high-sensitivity signal amplification circuit that amplifies the weak sensed signal before transmitting it back to the printer's main control board for data processing.
Q4: What precautions should be taken when replacing this component?
A4: Power off: Before replacing electronic components inside the printhead, the printer's power must be completely turned off to prevent residual static electricity from the high-voltage deflection system from damaging the chip. Prevent ink contamination: Ink or solvent residue is often present inside the printhead; ensure connectors are clean and dry during replacement. Any ink leakage onto the detector board will cause a short circuit.
Q5: Is this an OEM part or a compatible (aftermarket) part?
A5: Many suppliers of coding machine consumables offer "one-to-one" compatible replacement parts at a lower cost. For example, Kingsfang.com operates its own R&D and manufacturing facilities and offers parts covering 90% of the coding industry's needs, making it an excellent choice.
